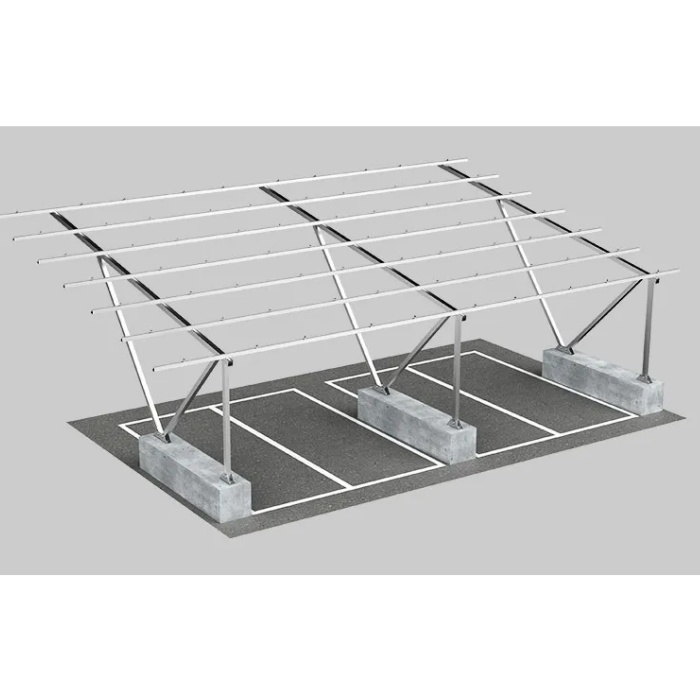

CarPort Solar Mounting Brackets -W model
CarPort Solar Mounting Brackets is used to build a photovoltaic parking shed, and the combination of photovoltaic power generation and carport is the simplest one in the combination of photovoltaic and building. it can not only achieve all the functions of the traditional carport, but also bring electricity generation benefits to the owner. it is stored in the battery by the charging device or directly supplied to the electric vehicle to charge for self-use.You can even use extra power to get online, Using aluminum alloy structure bracket,simple installation,generous,fashionable, beautiful.

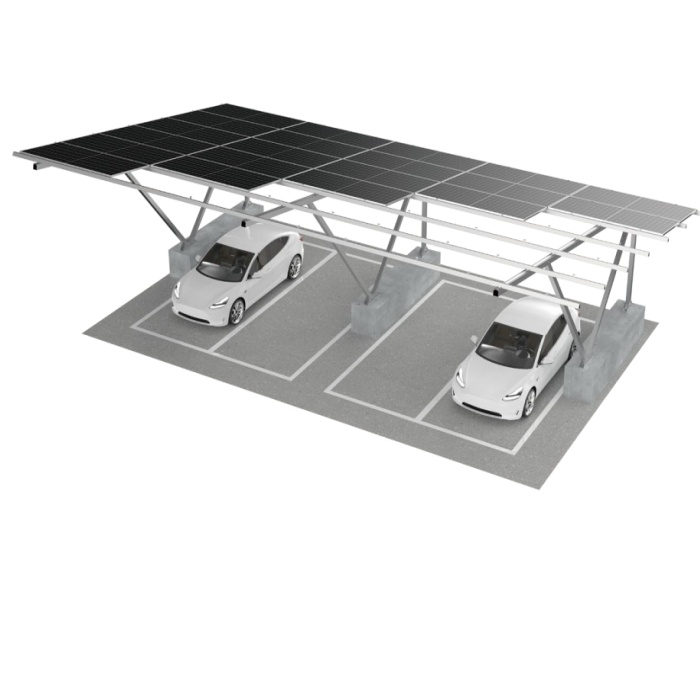

CarPort Solar Mounting Brackets -W model
Advanage
Customized Solution
Design case by case, making a good utilization of ground resource and pursuit for easy and quick installation.
Save Installation Time and Labor Cost on Site
With installation manuals and system solution, the construction on site will be simple. Less construction time directly reduces project costs.
High Waterproof
The special waterproof conforms to the structure of system, which make the performance Stronger
Compatible to Varied Solar Modules
With module clamps, the system compatible with most kinds of framed and frame and frameless modules.
CarPort Solar Mounting SystemTechnical Parameters
| PV Module Layout | Concrete Base |
| Tilt Angle | 0-60° |
| Ground Clearance | ≤2000mm+ |
| Material | AL 6005-T5, SUS 304, EPDM |
| Fastener | SUS304 & Zinc-Nickel Alloy Electroplated Steel |
| Small Components | AL6005-T5(Anodized) |
| Color | Silver / Black or Customized |
| Wind Load | 45m/s |
| Snow Load | 1.2KN/m2 |
| Warranty | 12 year for material |
| Applicable Solar Module | Framed or Frameless |
| Design Standard | Euro Code/EN1991/1993/1994, BS 6399, ASCE 7-10 International Building Code IBC 2009,California Building Code CBC 2010 |
CarPort Solar Mounting System Structure
