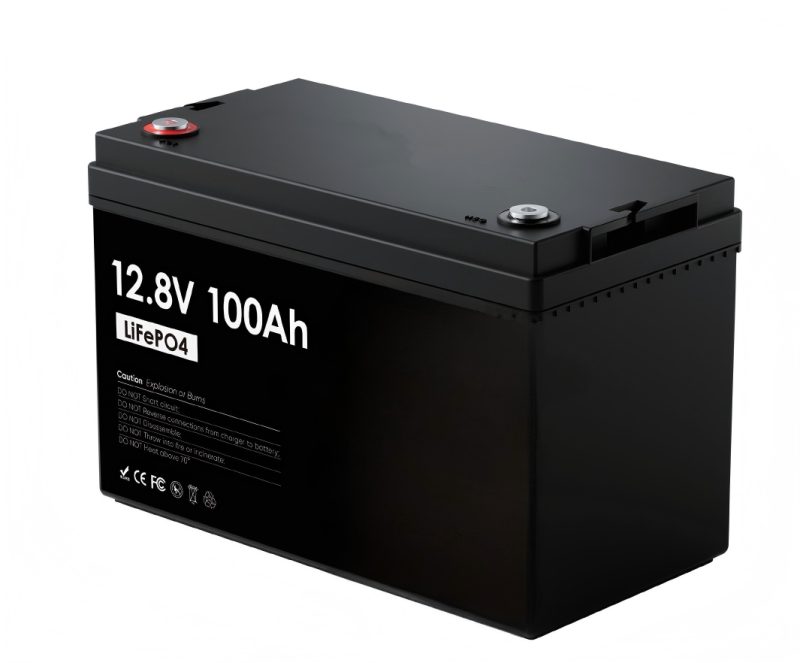

Kinyvin lifepo4 12V lithium battery pack for solar system 100ah
Kinyvin lifepo4 12V lithium battery pack for solar system 100ah is designed lightweight and durable energy storage solution, ideal for RVs, marine, and outdoor use. It features reliable LFP cells for over 5000cycles, and weighs under 11 kg for easy handling and installation. Its modulardesign and IP65 rating offer both flexibility and reliability.
Model : 12.8V 100Ah
Kinyvin lifepo4 12V lithium battery pack for solar system 100ah
High protection level
IP65
Higher Power
Delivers twice power of lead acid battery.
Higher discharge rate, while maintaining high energy capacity.
Longer Cycle Life
Offers up to 50000 times longer cycle life andfve times longer float/calendar life than lead acid battery.
Superior Safety
Lithium lron Phosphate chemistry eliminates the risk of explosionor combustion due to high impact, overcharging or short circuit.
Kinyvin lifepo4 12V lithium battery pack for solar system 100ah Specification
| Specification | |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah / 1280Wh |
| BMS | Integrated |
| Cycle Life | >5000 cycles @0.5C / 50%DOD |
| Months Self Discharge | <3% |
| Effciency of Charge | 100% @0.5C |
| Effciency of Discharge | 96~99% @0.5C |
| Charge Voltage | 14.2~14.6V |
| Charge Mode | 0.2C to 14.6V, then change to 0.02C (CC/CV) |
| Recommended Charge Current | 20A |
| Max. Charge Current | 100A |
| Charge Cut-o Voltage | 14.6V±0.2V |
| Max. Continuous Discharge Current | 100A |
| Peak Discharge Current | 800A+-160A (0.5~1.5S) |
| Discharge Cut-o Voltage | 10V±0.5V |
| Charge Temperature | 0°C~55°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C~60°C @60±25% Relative Humidity |
| Storage Temperature | -20°C~45°C @60±25% Relative Humidity |
| Protection Class | IP65 |
| Approx. Dimensions | 328mm*172mm*220mm |
| Approx. Weight | 10.5kg |
| Terminal | M8 |
| Maximum Modules in Series | 4 |
| Monitoring Option | Bluetooth with Smartphone App |
