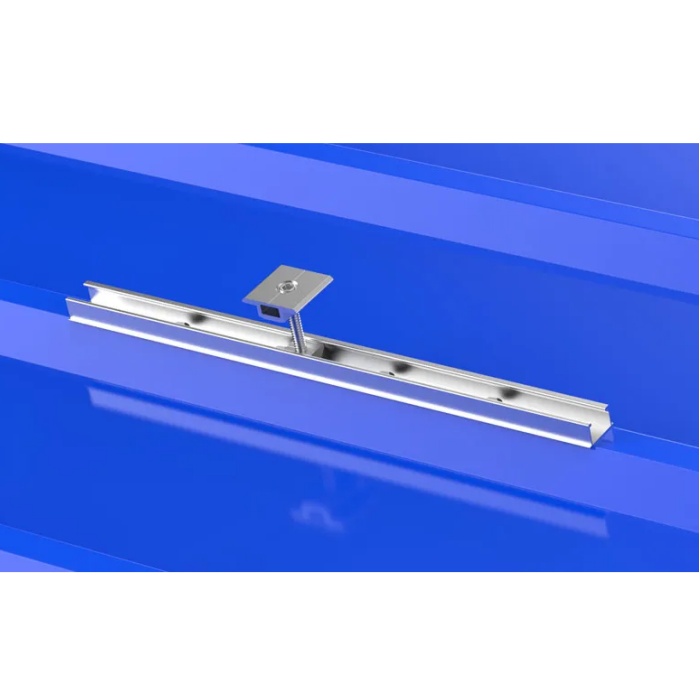

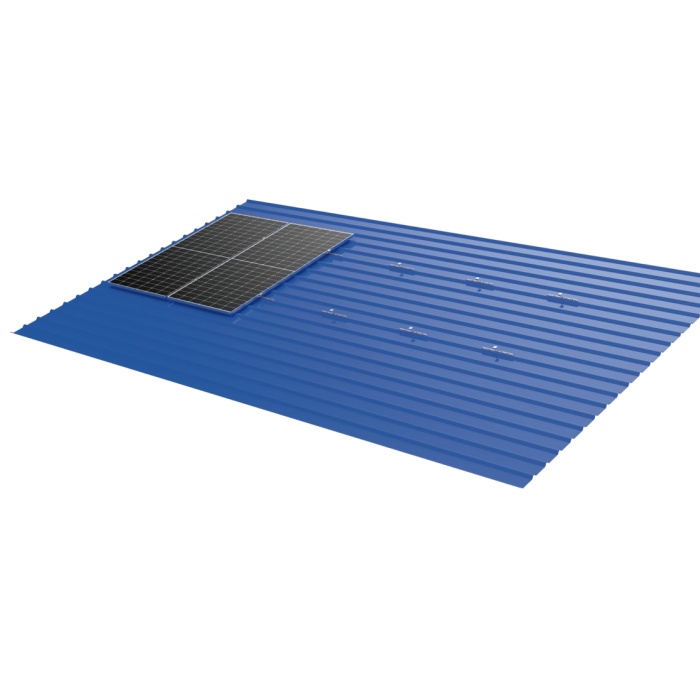

MINI-RAIL KIT METAL ROOF PV MOUNTING SYSTEM
MINI-RAIL KIT METAL ROOF PV MOUNTING SYSTEM is mainly applied to Trapezoidal Metal Roof commercial and industrial solar projects. The system can achieve stable and strong connection between the roof support structure and solar modules with modular Patented design. Pre-assembled kits save the installation time and cost onsite.
MINI-RAIL KIT METAL ROOF PV MOUNTING SYSTEM
Advanage
Applicable for Dierent Metal Roofs
Design project by project, selecting configuration of mounting system components flexibly.
Save Installation Time and Cost
Pre-assembled components and clear installation manuals are supplied to save the onsite installation time and cost, lead to better RoI.
Compatible to Dierent Types of Solar Modules
Compatible to most kinds of framed 60-cell, 72-cell, half-cut cells modules and frameless modules.
Metal Roof PV Mounting SystemTechnical Parameters
| PV Module Layout | Portrait or Landscape |
| Material | AL 6005-T5, SUS 304, EPDM |
| Fastener | SUS304 & Zinc-Nickel Alloy Electroplated Steel |
| Small Components | AL6005-T5(Anodized) |
| Color | Silver / Black or Customized |
| Inclination | Parallel to the roof |
| Wind Load | 60m/s or Customized |
| Snow Load | 1.6KN/m2 or Customized |
| Warranty | 12 year for material |
| Applicable Solar Module | Framed or Frameless |
| Design Standard | Euro Code/EN1991/1993/1994, BS 6399, ASCE 7-10 International Building Code IBC 2009, California Building Code CBC 2010 |

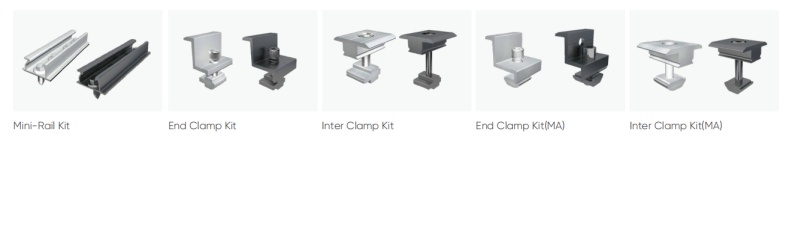

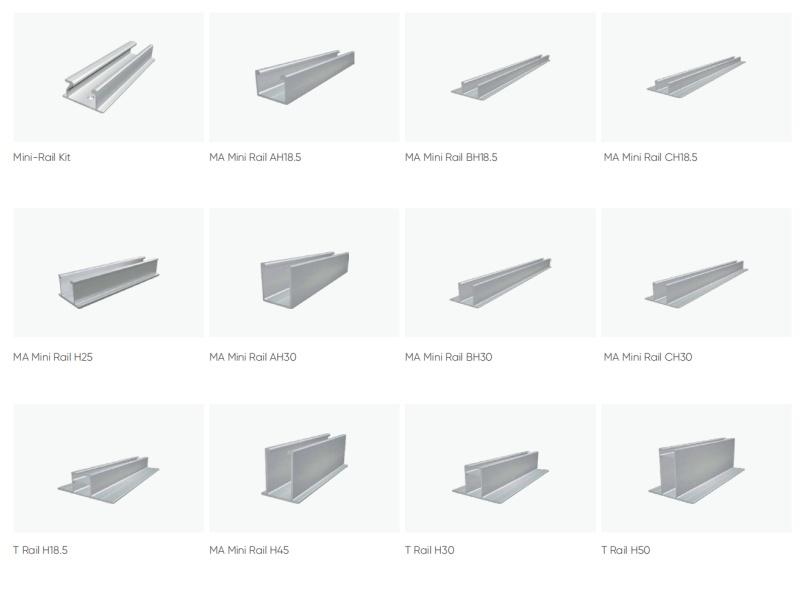

Roof PV Mounting System Component Details
Roof PV Mounting System Optional Hook Types
