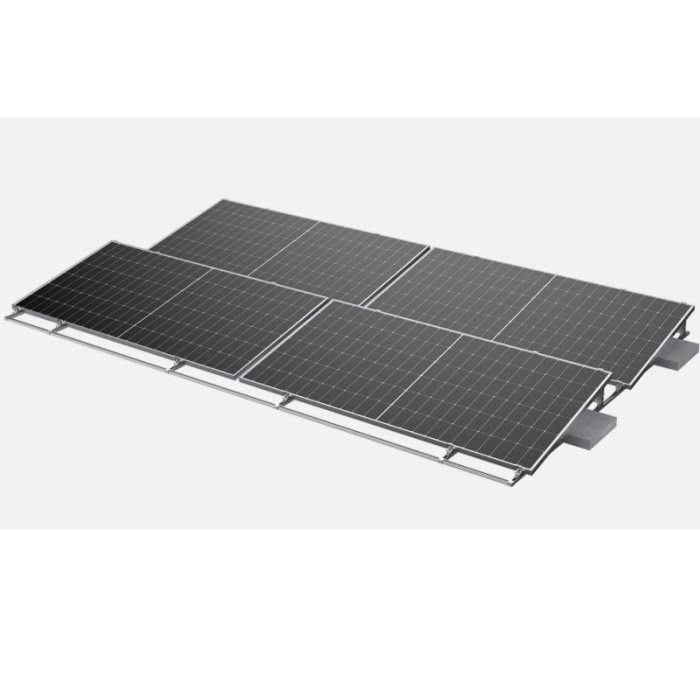

BALLASTED ROOF SOLAR PV MOUNTING SYSTEM – SINGLE SIDE
BALLASTED ROOF SOLAR PV MOUNTING SYSTEM – SINGLE SIDE Solar Pv Mounting System is a non-penetration solution for flat rooftop, to meet dierent tilt angles installation. It is applicable to the roof areas with medium wind load. Quick installation and stable structure are assured by the modular patented design.
BALLASTED ROOF SOLAR PV MOUNTING SYSTEM
– SINGLE SIDE
Advanage
High Durability Ensure the Structure Strength
Professional structure design and high-density aluminum material ensure the stability and strength of the structure.
Unique Matrix Design

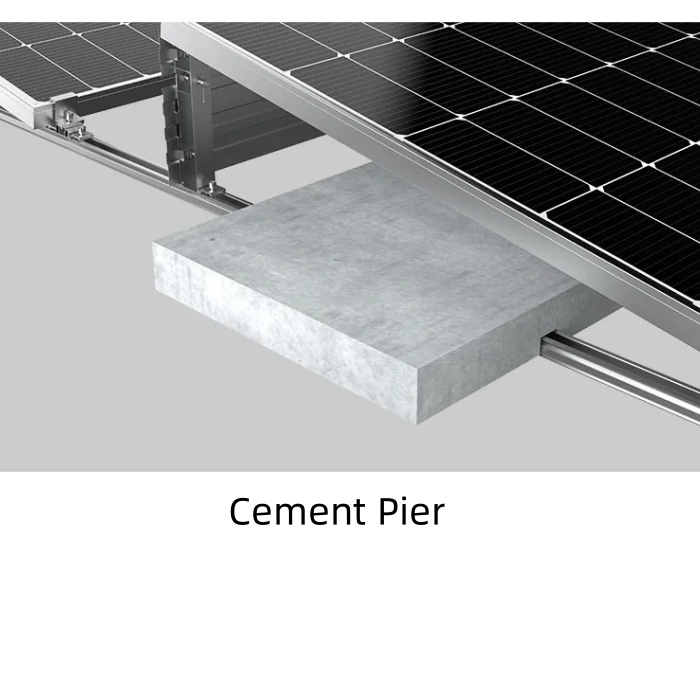

The matrix design further assures the stability of the whole system, and flexibly compatible with concrete block or ballast foundation.
Reasonable Installation and Package Design
Simplified components configuration lead to quicker installation and smaller package size, saving installation cost and freight.
Ballasted Roof Mounting SystemTechnical Parameters
| PV Module Layout | Landscape |
| Tilt Angle | 0-30° |
| Installation Site | Flat Concrete roof,Flat Ground,Membrance roof |
| Material | AL 6005-T5, Q235B(hot-dip Galvanized) |
| Fastener | SUS304 & Zinc-Nickel Alloy Electroplated Steel |
| Small Components | AL6005-T5(Anodized) |
| Color | Silver / Black or Customized |
| Inclination | Parallel to the roof |
| Wind Load | 44m/s |
| Snow Load | 1.6KN/m2 |
| Warranty | 12 year for material |
| Applicable Solar Module | Framed or Frameless |
| Design Standard | Euro Code/EN1991/1993/1994, BS 6399, ASCE 7-10 International Building Code IBC 2009, California Building Code CBC 2010 |

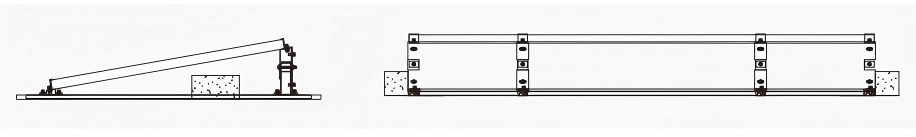

Ballasted Roof Mounting System Structure
