ROOF SOLAR PV MOUNTING SYSTEM MATRIX
Roof Solar PV Mounting System Matrix II is derived from RM I to meet dierent roof projects demands. Solar modules can be arranged with single or double rows of landscape or portrait orientation. Quick installation and stable structure are assured by the modular Patented design.
ROOF SOLAR PV MOUNTING SYSTEM MATRIX II
Advanage
System Compatibility
Components mostly pre-assembled in factory to assure quick and reliable installation on site. Suitable for dierent flat rooftop, and compatible to different types of solar modules.
Adjustability
Tilt angle can be adjustable
Unique Mudsill Design
The mudsill can be fixed to flat roof or pitched roof with concrete foundation or steel foundation.
Solar Module Layout Flexibility
Both landscape and portrait solar module layout are suitable. Both single row and double rows layout can be achieved separately or combined.
Ground PV Mounting SystemTechnical Parameters
| PV Module Layout | Portrait or Landscape |
| Tilt Angle | 0-60° |
| Ground Clearance | ≤500mm~2000mm |
| Material | AL 6005-T5, SUS 304, EPDM |
| Fastener | SUS304 & Zinc-Nickel Alloy Electroplated Steel |
| Small Components | AL6005-T5(Anodized) |
| Color | Silver / Black or Customized |
| Inclination | Parallel to the roof |
| Wind Load | 60m/s or Customized |
| Snow Load | 1.6KN/m2 or Customized |
| Warranty | 12 year for material |
| Applicable Solar Module | Framed or Frameless |
| Design Standard | Euro Code/EN1991/1993/1994, BS 6399, ASCE 7-10 International Building Code IBC 2009, California Building Code CBC 2010 |

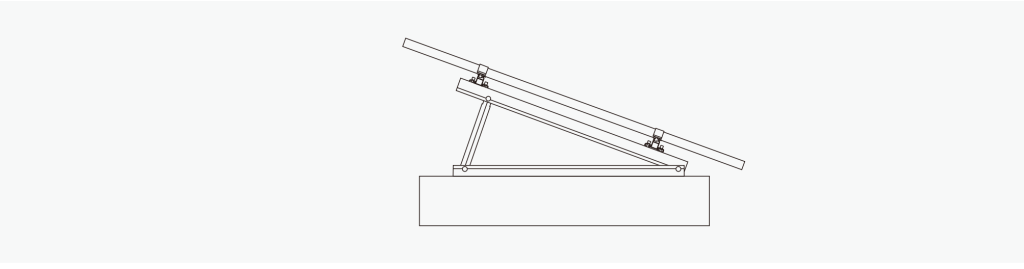

Ground Mounting System Structure
