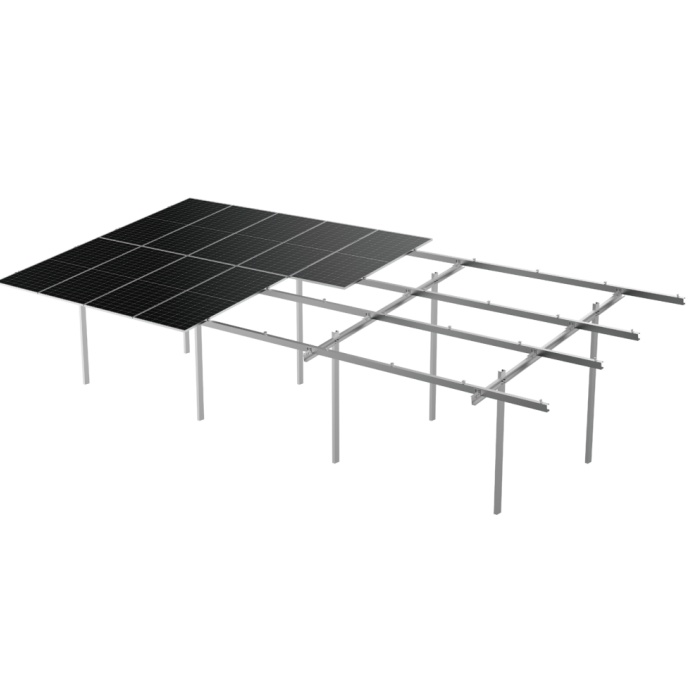

C-SHAPE,I-SHAPE,π-SHAPE PILES GROUND MOUNTING
C-shape, I-shape, π-shape Piles Solar Pv Ground Mounting System is applied for the installation of large-scale and utility-scale solar PV power plant. Main components are made of hot-dip galvanized steel, with good performance of structure strength, stability, and anti-corrosion. Compatible with varied solar modules. Unique piles and structure design save installation time and cost.
C-SHAPE,I-SHAPE,π-SHAPE PILES GROUND MOUNTING
Advanage

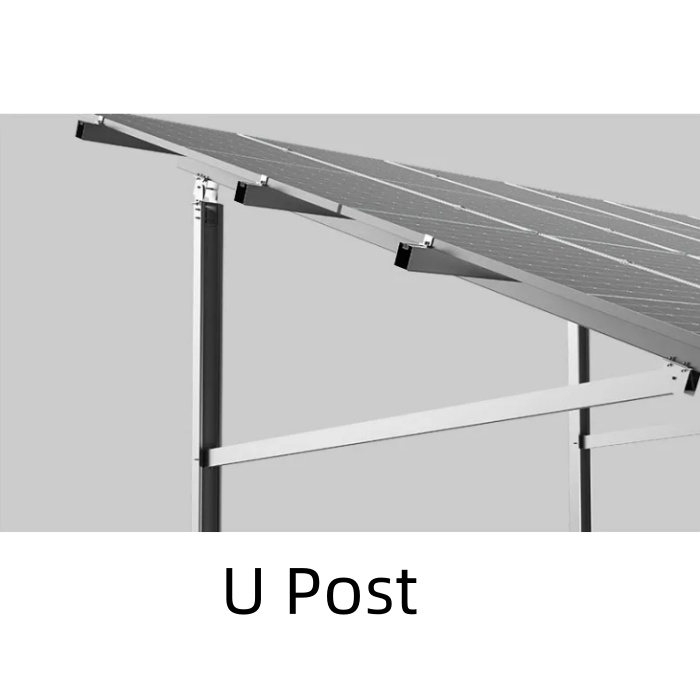

Unique Pile Design
Unique post design suitable for varied soil conditions and strengthen the whole structure stability.
Flexibility and Adjustability
The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best
yield for solar modules.
Pre-assembled Components Save Onsite Installation Time Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.
Compatible to Varied Solar Modules
With module clamps, the system compatible with most kinds of framed 60-cell, 72-cell, half-cut cells modules and frameless modules.
Ground PV Mounting SystemTechnical Parameters
| PV Module Layout | Portrait or Landscape |
| Tilt Angle | 0-60° |
| Ground Clearance | ≤500mm~2000mm |
| Material | AL 6005-T5, SUS 304, EPDM |
| Fastener | SUS304 & Zinc-Nickel Alloy Electroplated Steel |
| Small Components | AL6005-T5(Anodized) |
| Color | Silver / Black or Customized |
| Inclination | Parallel to the roof |
| Wind Load | 60m/s or Customized |
| Snow Load | 1.6KN/m2 or Customized |
| Warranty | 12 year for material |
| Applicable Solar Module | Framed or Frameless |
| Design Standard | Euro Code/EN1991/1993/1994, BS 6399, ASCE 7-10 International Building Code IBC 2009, California Building Code CBC 2010 |

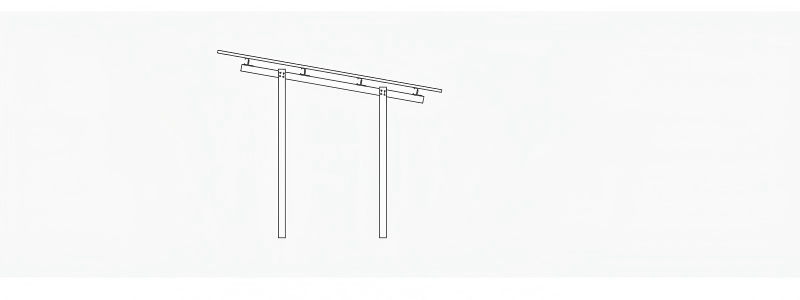

Ground Mounting System Structure
