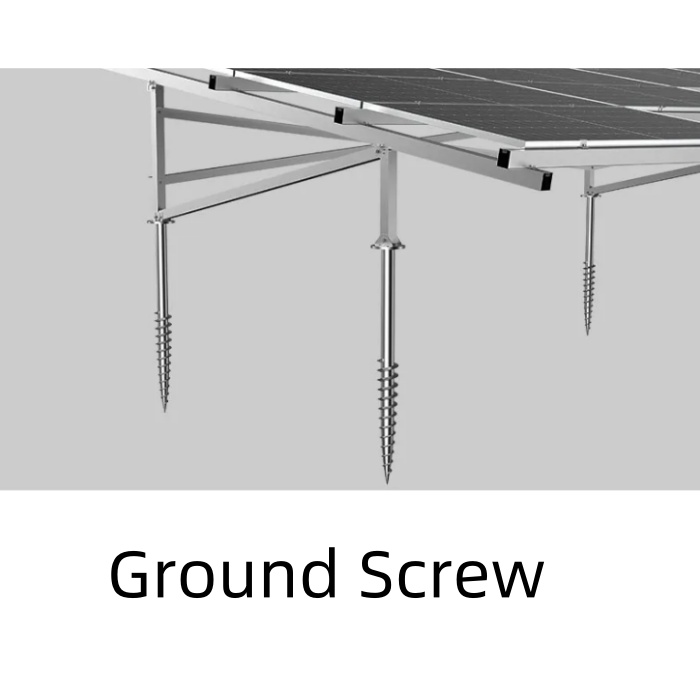

CONCRETE BASE OR GROUND SCREW MOUNTING
Ground Terrace Concrete Base Or Ground Screw Mounting is a highly pre-assembled ground mounting system, with strong wind load and snow load resistance. The system can achieve minor adjustment onsite with special design of Anchor Plate to adapt to dierent sites, and is mainly applied to medium to large scale solar PV projects.Patented and certified system design ensure projects safety and quick installation.
CONCRETE BASE OR GROUND SCREW MOUNTING
Advanage
Pre-assembled Components Save Onsite Installation Time
Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.
No Drill on Portrait Beam
It improves the strength of the system to fix the portrait beam onto the post by special designed clamps, with force at the same direction of the gravity
Quick Modular Kit Fixation
Most of the components are designed as modular kit with anodized aluminum to further ensure easy and fast construction on site.
Flexibility and Adjustability
The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.
Ground PV Mounting SystemTechnical Parameters
| PV Module Layout | Portrait or Landscape |
| Tilt Angle | 0-60° |
| Ground Clearance | ≤500mm~2000mm |
| Material | AL 6005-T5, SUS 304, EPDM |
| Fastener | SUS304 & Zinc-Nickel Alloy Electroplated Steel |
| Small Components | AL6005-T5(Anodized) |
| Color | Silver / Black or Customized |
| Inclination | Parallel to the roof |
| Wind Load | 60m/s or Customized |
| Snow Load | 1.6KN/m2 or Customized |
| Warranty | 12 year for material |
| Applicable Solar Module | Framed or Frameless |
| Design Standard | Euro Code/EN1991/1993/1994, BS 6399, ASCE 7-10 International Building Code IBC 2009, California Building Code CBC 2010 |

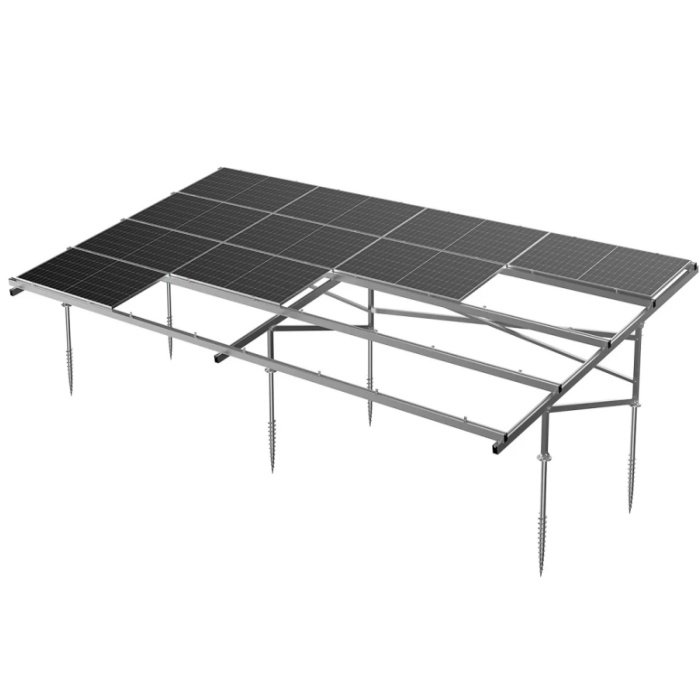

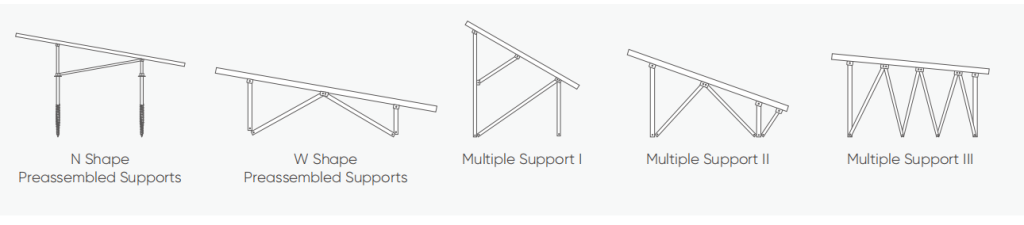

Ground Mounting System Structure
